Product Description
High Performance Saw Touch Monitor 15.6 Inch For Kiosk
Saw Touch Monitor is a 15.6-inch capacitive touch screen kit with open frame LCD touch screen. It features SAW (Surface Acoustic Wave) touch technology for a faster and more accurate response. The monitor is highly responsive, with a brightness of 400cd/m2 and a contrast ratio of 650:1. It supports input interfaces of VGA and DVI, making it an ideal solution for many commercial and industrial applications. This open frame touchscreen is reliable, durable, and easy to install, making it the perfect choice for those looking for a saw touch screen.
Specification
| Complete Machine |
| Model No. | KOT-0156U-SA4BP (P/N:KOT-156P-004) |
| Series | OT |
| Display Type | 16:9 Ratio 15.6" TFT-LCD |
| Active Area | 344.23*193.54(mm) |
| Monitor Dimensions (W*H*D) | 388.5*237.5*43(mm) |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° |
| Contrast Ratio (Typ.) | 650:1 |
| Video Input | VGA/DVI |
| Frequency (H/V) | 30～80KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥15,000 Hours |
| LED Back Light Life (Typ.) | ≥15,000 Hours |
| Weight(N.W/G.W) | 3Kg(1pcs)/8.25Kg(2pcs in one package) |
| Package dimensions | 468*150*323(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
Mechanical Dimensions
Applications:

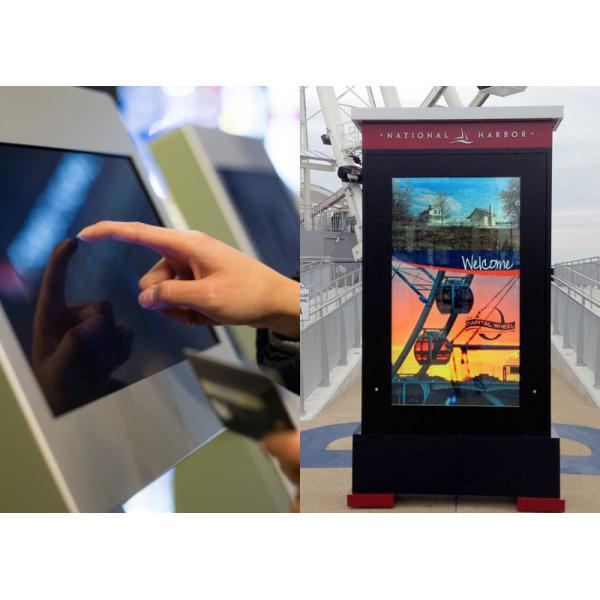

KeeTouch Saw touch monitors are widely used in industries such as kiosk, retail, travel service, gaming, hotels, finance, self-service, education, exhibitions, smart home, entertainments, transit, healthcare, public service, e-commerce, restaurants, payment systems, operation systems, railway stations, museums, subways, control and conference, airports, etc.
Support and Services:
SAW Touch Monitor Technical Support and Service
SAW Touch Monitor provides comprehensive technical support and service to ensure our customers can get the most out of their touch monitor. Our team of knowledgeable and experienced technicians provide support via phone, email and live chat. We also provide troubleshooting and repair services, as well as software and firmware updates.
For customers who need assistance with the installation and setup of their touch monitor, we offer a range of installation and setup services. We can help you get your touch monitor up and running in no time.
Our technical support and service team is available 24/7 to provide you with the best customer experience possible. We are dedicated to providing you with the best customer service and support to help you get the most out of your touch monitor.
FAQ:
- Q: What is the brand name of the SAW Touch Monitor?
A: The brand name of the SAW Touch Monitor is KEETOUCH. - Q: What is the model number of the SAW Touch Monitor?
A: The model number of the SAW Touch Monitor is KOT-156P-004. - Q: Where is the SAW Touch Monitor produced?
A: The SAW Touch Monitor is produced in Shenzhen, China. - Q: What certifications does the SAW Touch Monitor have?
A: The SAW Touch Monitor has CCC, UL, FCC, CE, CB, and RoHS certifications. - Q: How much is the minimum order quantity for the SAW Touch Monitor?
A: The minimum order quantity for the SAW Touch Monitor is 1pcs.
